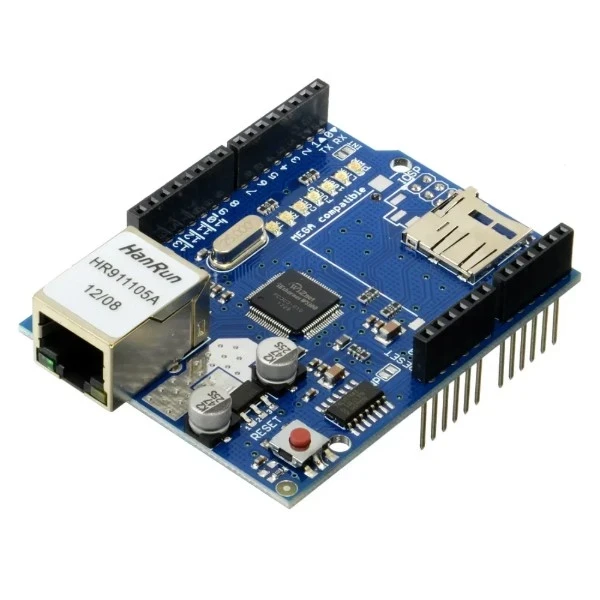

W5100 Ethernet Network Shield Expansion Board for Arduino UNO | Ethernet Module

The W5100 Ethernet Network Shield Expansion Board for Arduino UNO is a practical Ethernet networking solution for Arduino projects that need reliable wired Internet or LAN connectivity. Based on the W5100 Ethernet controller, this shield allows an Arduino UNO to communicate over an Ethernet network using a standard RJ45 network cable.

It is suitable for Arduino web server projects, IoT applications, home automation, remote monitoring, data logging, network-controlled devices and embedded networking projects. The shield plugs directly onto an Arduino UNO, making it convenient for students, electronics hobbyists and engineers in Bangladesh.

The W5100 Ethernet Shield is designed to add wired Ethernet communication capability to compatible Arduino boards, especially the Arduino UNO. It uses the WIZnet W5100 Ethernet controller, which provides hardware-based TCP/IP networking and reduces the networking workload on the Arduino microcontroller.

With an RJ45 Ethernet interface, the board can connect your Arduino project to a local network or Internet-enabled network. This makes it possible to build projects such as an Arduino web server, Ethernet-based sensor monitoring system, remote control system, LAN automation controller and IoT prototype.

The shield is particularly useful when a wired network connection is preferred over Wi-Fi because Ethernet can provide a stable and predictable network connection for fixed installations.

Features:

• W5100 Ethernet controller
• Designed for Arduino UNO-compatible projects
• RJ45 Ethernet network interface
• Wired LAN connectivity
• Hardware TCP/IP support
• Supports common network protocols such as TCP and UDP
• SPI communication with Arduino
• Suitable for Arduino web server applications
• Useful for IoT and automation projects
• Easy shield-style installation
• Suitable for students, makers and engineers

Specifications:

Note: Exact board layout, LED arrangement and additional features can vary between W5100 shield manufacturers. Check the seller's board version and datasheet when exact hardware specifications are important.

W5100 Ethernet Shield Pin/Interface

The shield communicates with the Arduino through the SPI interface.

For the Arduino UNO, the commonly used SPI pins are:

The W5100 shield typically uses D10 as the Ethernet chip-select pin, while SPI communication uses D11, D12 and D13.

What Can You Build With W5100 Ethernet Shield?

The W5100 Ethernet Shield can be used for many practical electronics and networking projects:

1. Arduino Ethernet Web Server
2. LAN-controlled relay
3. Home automation system
4. Remote sensor monitoring
5. Temperature and humidity monitoring
6. Network data logger
7. Industrial automation prototype
8. Ethernet-based IoT project
9. Local network access control
10. Arduino remote control system
11. Network-connected display
12. Embedded Ethernet controller

W5100 Ethernet Shield vs Wi-Fi

For a fixed Arduino installation where stable wired networking is more important than wireless connectivity, the W5100 is a strong option.
